Capacitive switches, also known as capacitive sensors or capacitive  keys, are the interface option of choice for a variety of appliance, medical and  industrial applications that don’t require the functionality of a full touch  panel but require an elegant, dependable and sealable solution. Depending on the  application requirements, capacitive switches can be backlit or integrated into  a display assembly for a cost effective but sleek and extremely modern  design.

A capacitive touch switch works by using body capacitance, a property  of the human body that gives it great electrical characteristics. As the user’s  finger gets closer to the switch’s surface, the switch’s electronics detect a  change in the capacitance of the surface and registers a touch. Capacitive  switches can also integrate sliders or wheels for additional control  functionality.

Because there are no mechanical components or moving parts, and the  sensors can be placed and sealed underneath a rigid material (such as glass, PET  or ABS), capacitive touch controls have excellent reliability and life spans.   With the additional benefit of zero force actuation, capacitive switches enhance  the user experience of any product.

Wide-Ranging Design & UI Flexibility

The exceptionally simple, flexible and modular design of capacitive  switches offer a number of key benefits:-

•     Long lifespan - up to millions of  touches, No moving parts to breakdown or fail

•     Easy integration - plug and play  HMI assemblies

•     Design Flexibility - Flexible  substrate allows for greater design choice, different panel geometries and  thinner stack-ups

•     Quicker Development & Lead  Times - Modular design allows for faster and easier  development; printing technology allows for 8-10 day turnarounds

•     Finishing – Variety of materials and display  solutions allows for easy price and design differentiation

Turn-key Design & Manufacturing Solution

One of the few suppliers in the industry with extensive home  appliance experience and the capability to provide a full touch solution to  customers: from the product design, software and IC tuning, to final production  and display integration.

•     Capacitive touch sensor design and manufacturing

•     Cover lens and touch sensor optical bonding in a class 1000+  cleanroom

•     Dignity can provide patented modular IC as well as touch  software & firmware design support

•     Full touch display module production and integration available,  with LED & LCD displays, back-lighting, etc.

•     Display board development and sourcing support available

Highly Customizable

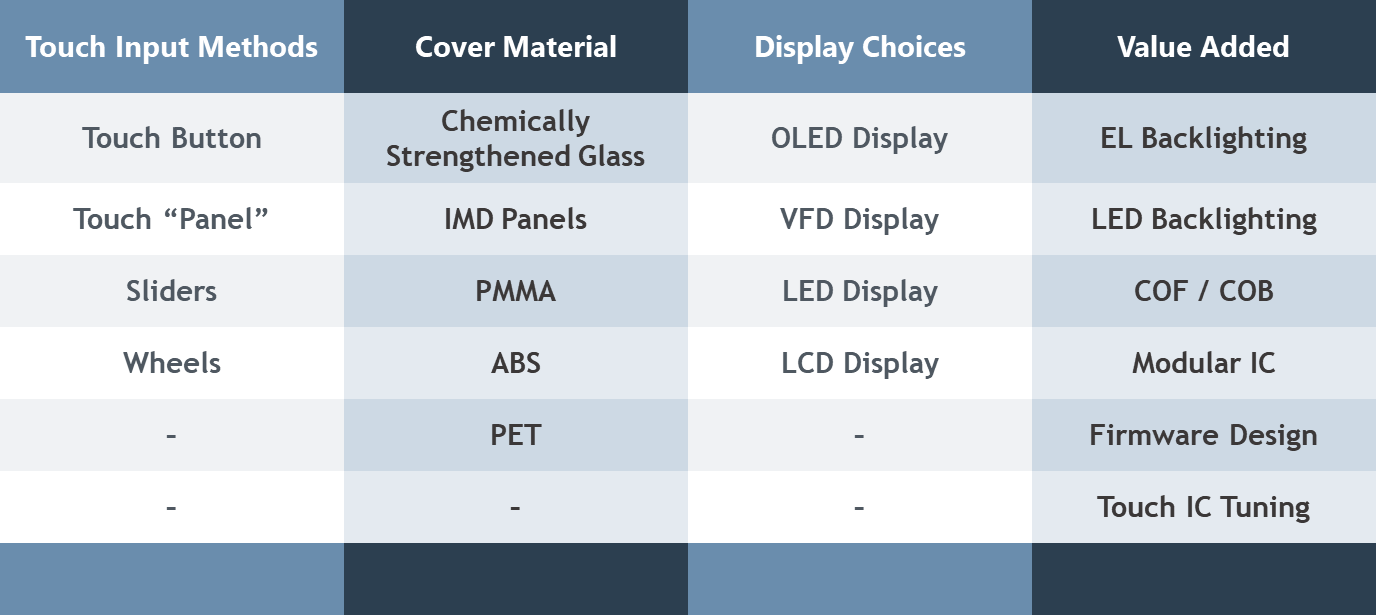

• Capacitive Switch Design Options  - Dignity  has a wide variety of product options to provide a customized solution for your  application needs.

• Cover Lens Material –  we can provide the switch assembly integrated into the cover lens through our  in-house bonding process

• Display Assembly –  the capacitive switch can be provided as a full assembly with an integrated  LCD/LED/OLED display

• Touch Input Methods –  touch inputs can be accomplished through simple button controls, panel controls,  sliders and or wheels

• Back-lighting –  a variety of back-lighting methods and colors are available

• Touch Controller –  the touch controller can be embedded in multiple ways with the touch sensor  assembly (COB/COF), including through Dignity’s patent pending modular IC  design
